Parker Heavy-Duty Telescoping Hydraulic Hoist
1-15/16” x 13”, cylinder pin is standard.

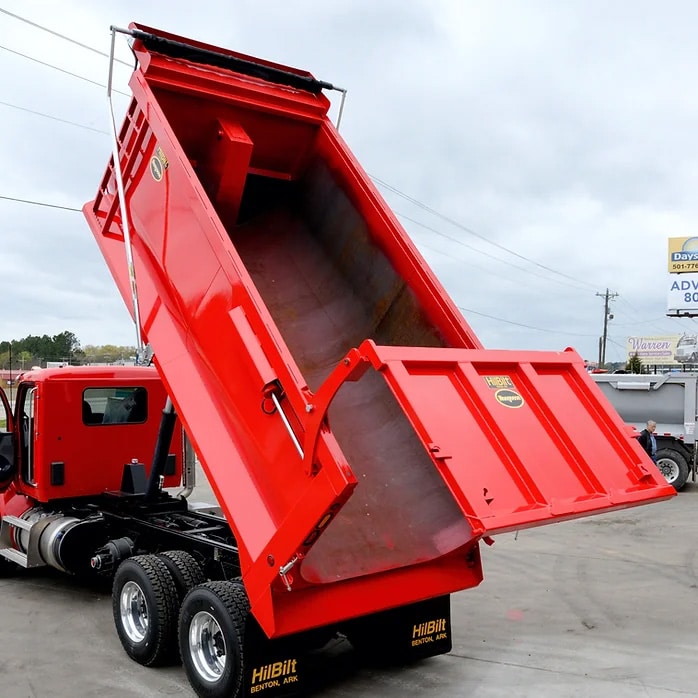

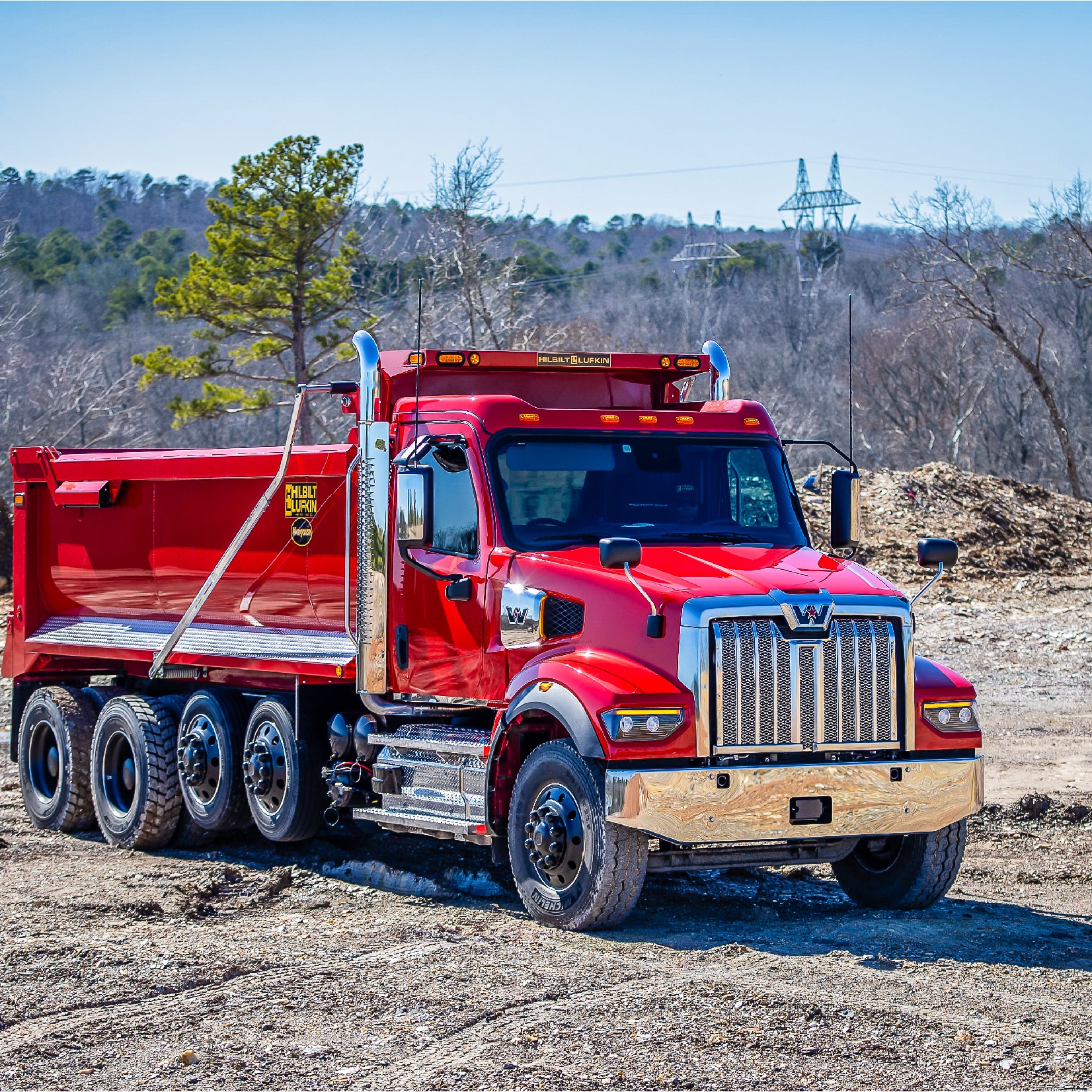

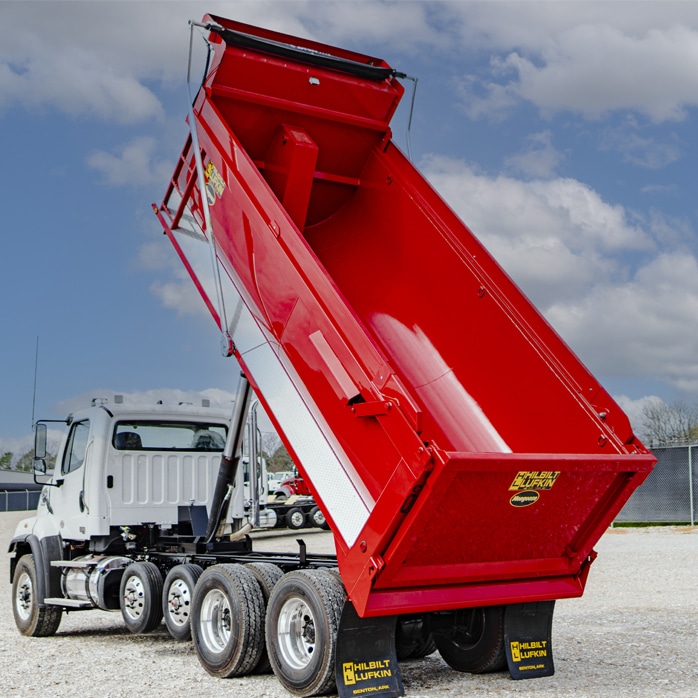

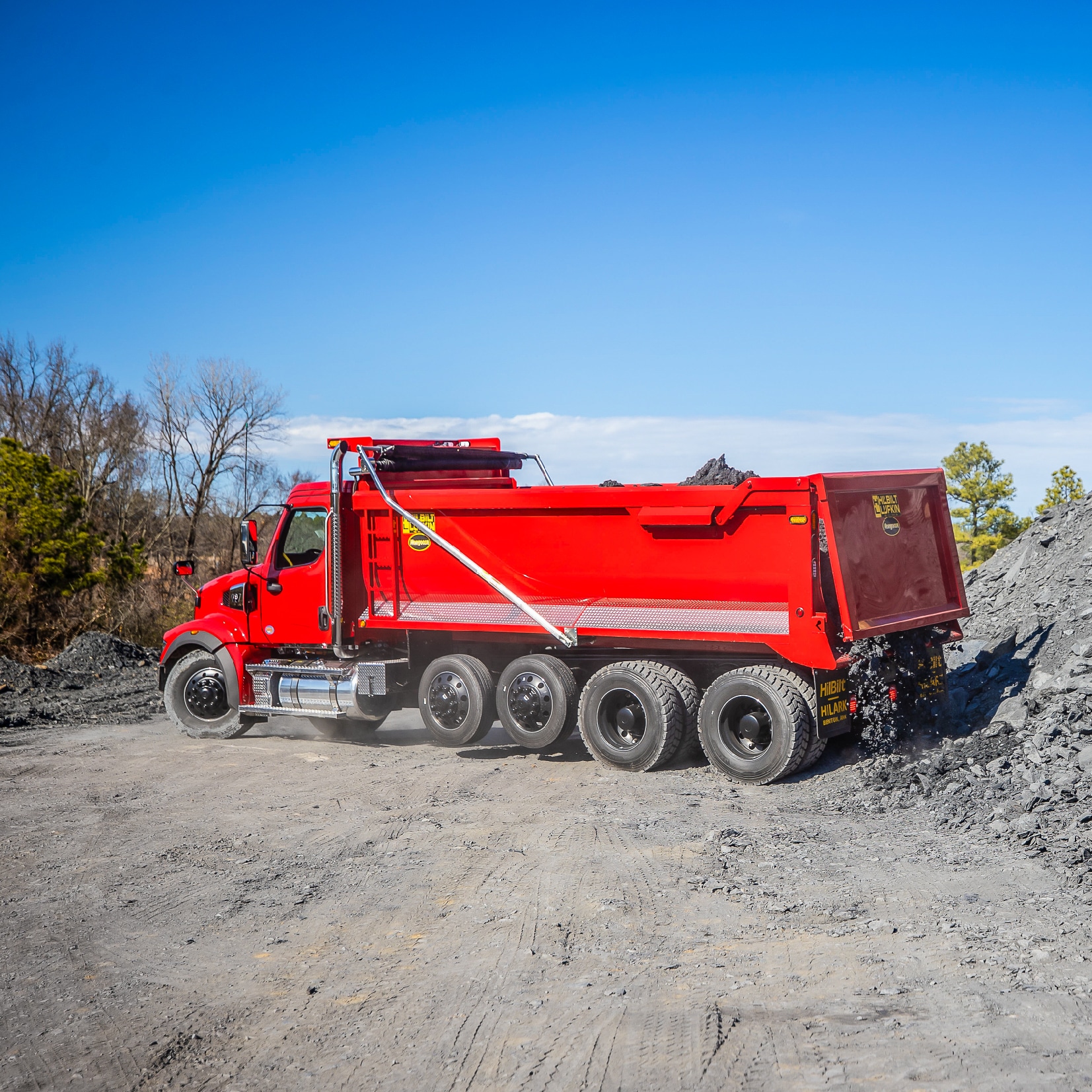

Mongoose Dump Bodies Designed for Rock, Broken Concrete, Demolition and Other High-Impact Jobs the Others Back Away From

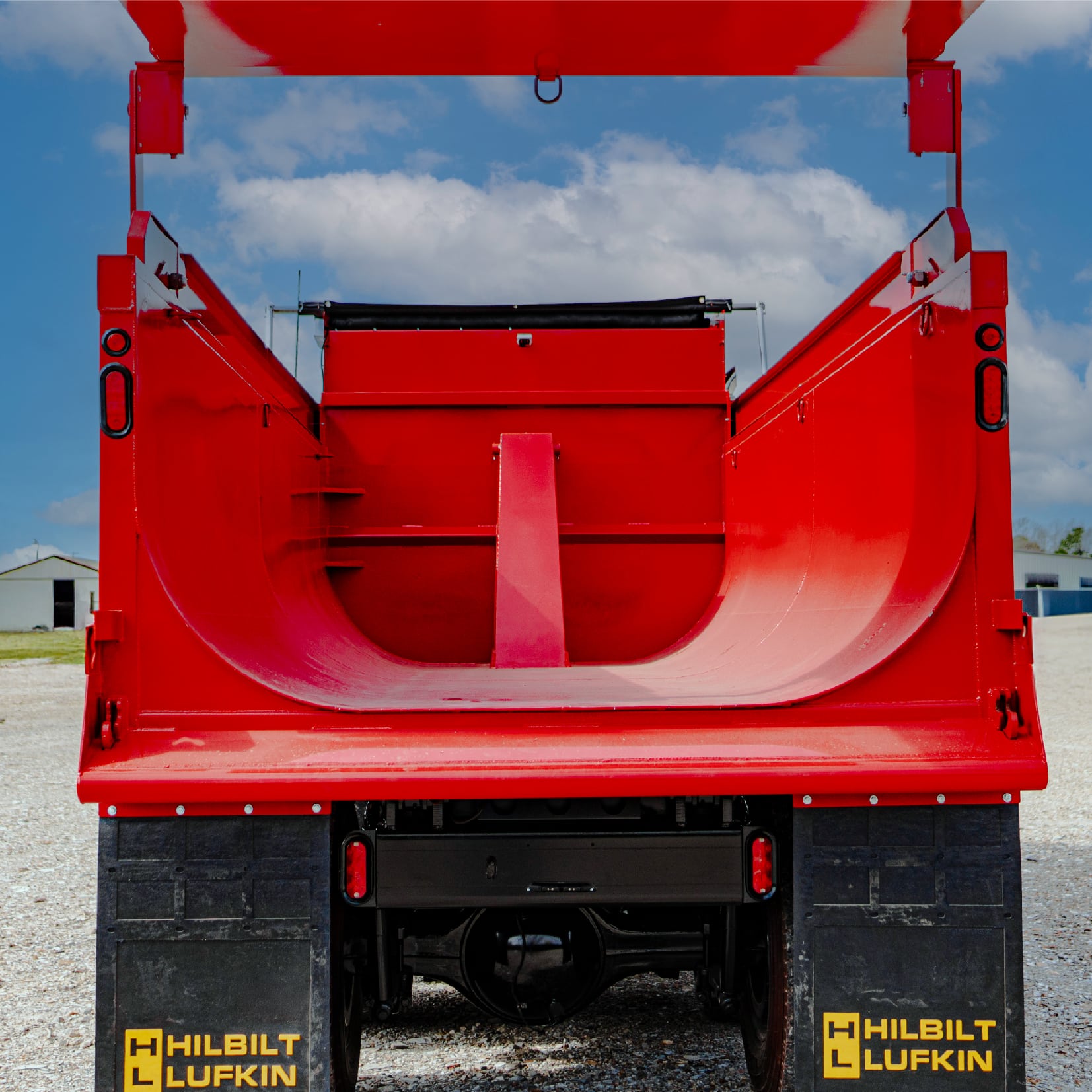

Available in 3/16″, 1/4″ or 5/16″, the Mongoose Dump Body is built tough and ready to tackle jobs that others back away from. Designed for hauling jobs that call for handling broken concrete, shot rock or other high-impact materials. The Mongoose has withstood the test of time in all applications!
Available in Medium Duty, Heavy Duty & Ultra Heavy Duty with AR 450 material. Optional AR 500 TUF Available.
Product Resources
Mongoose Dump Body Features

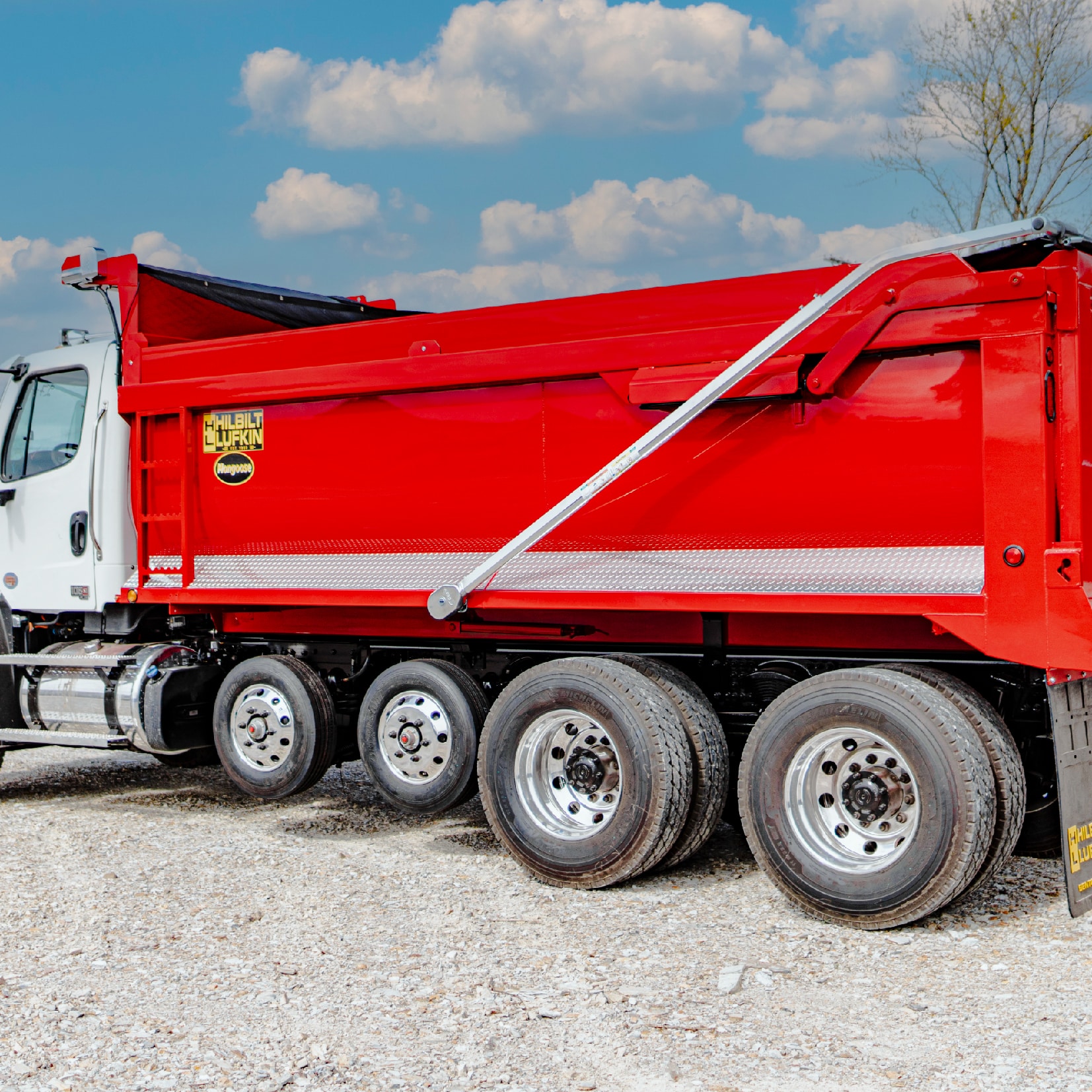

Side Top Rail
Standard 6”x 4” rectangular tube providing additional strength and rigidity versus a formed section top rail.

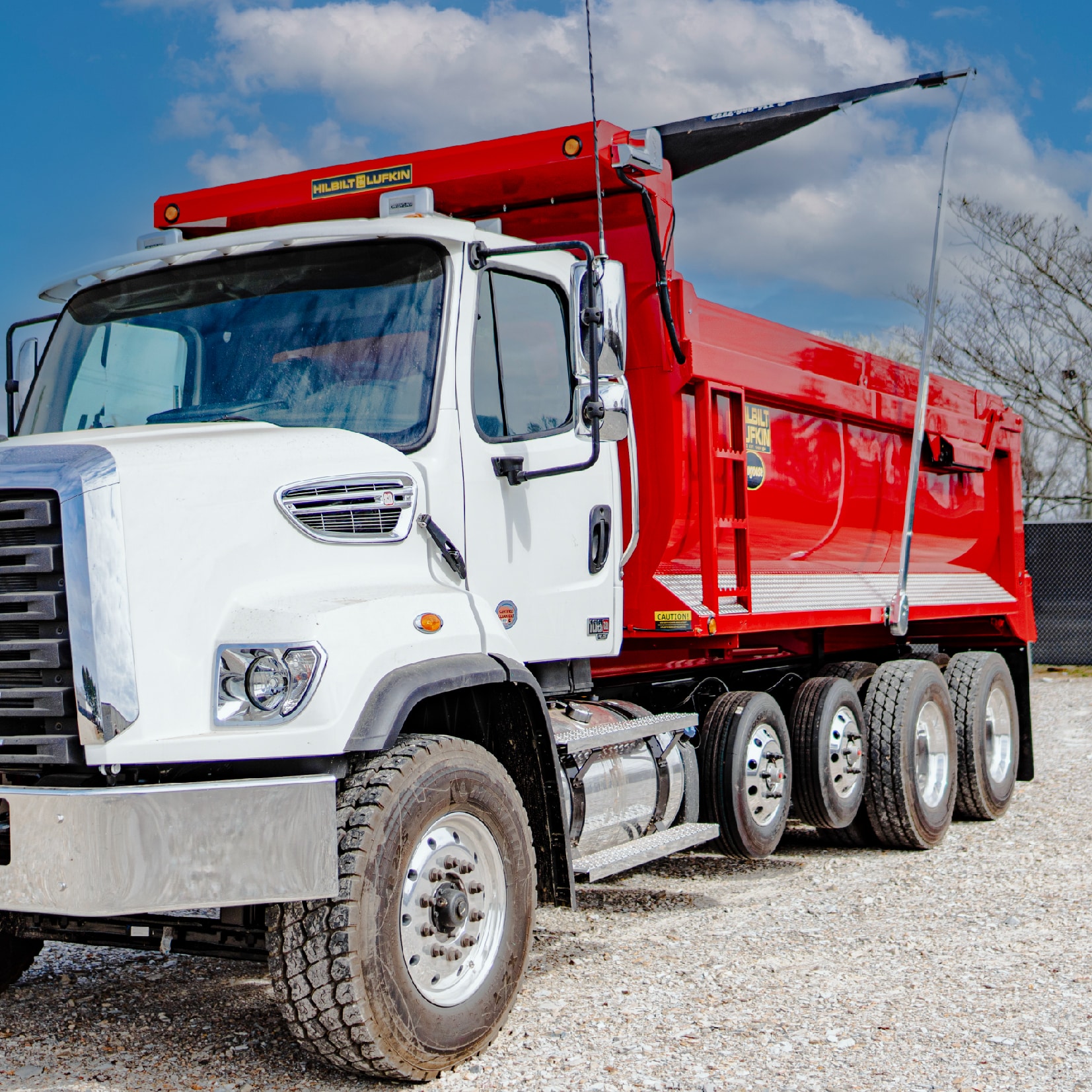

Cab Protector
Features angle bracing for maximum strength. Options include 1/4, 1/2, 3/4 & Full. Shown with optional integrated tarp mount.

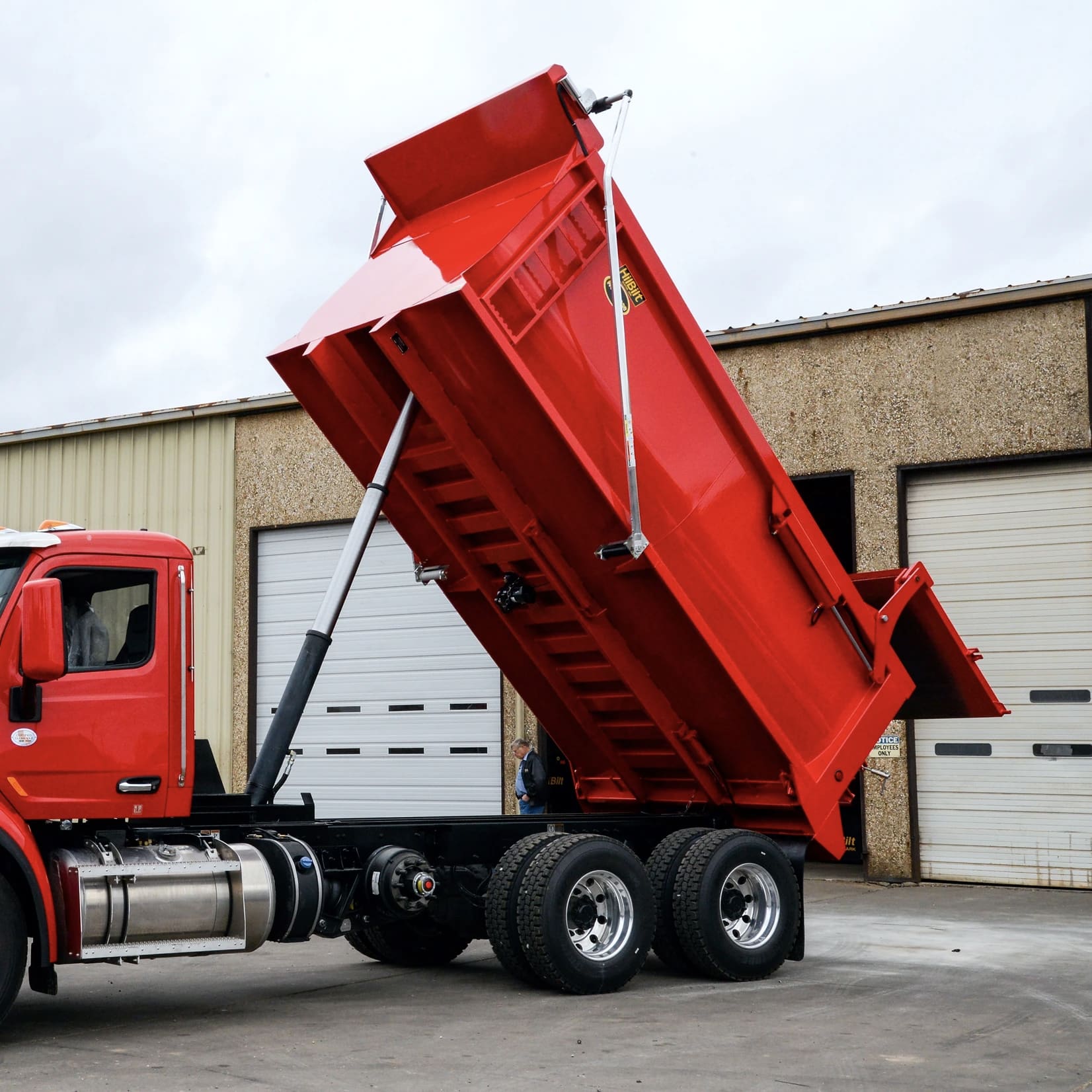

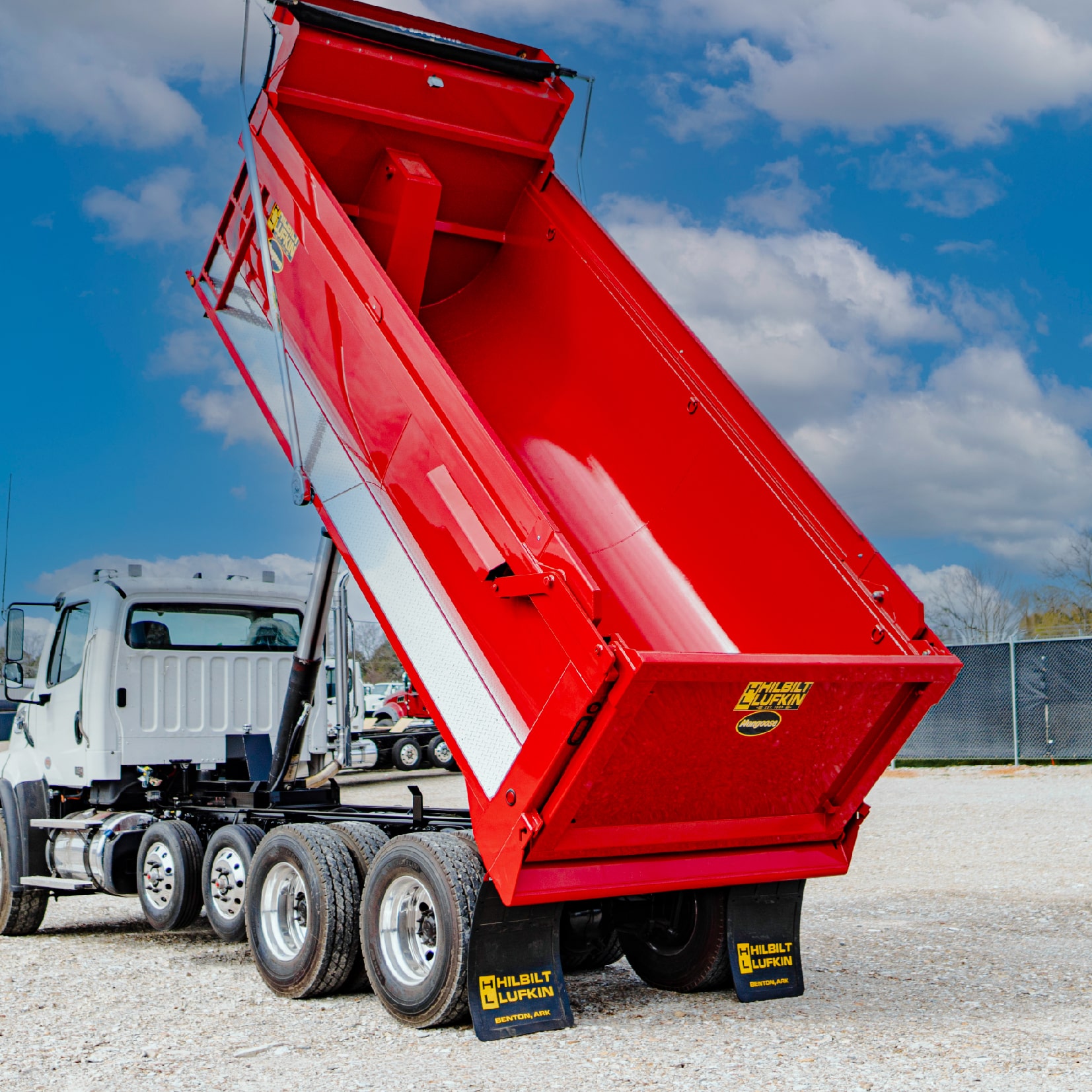

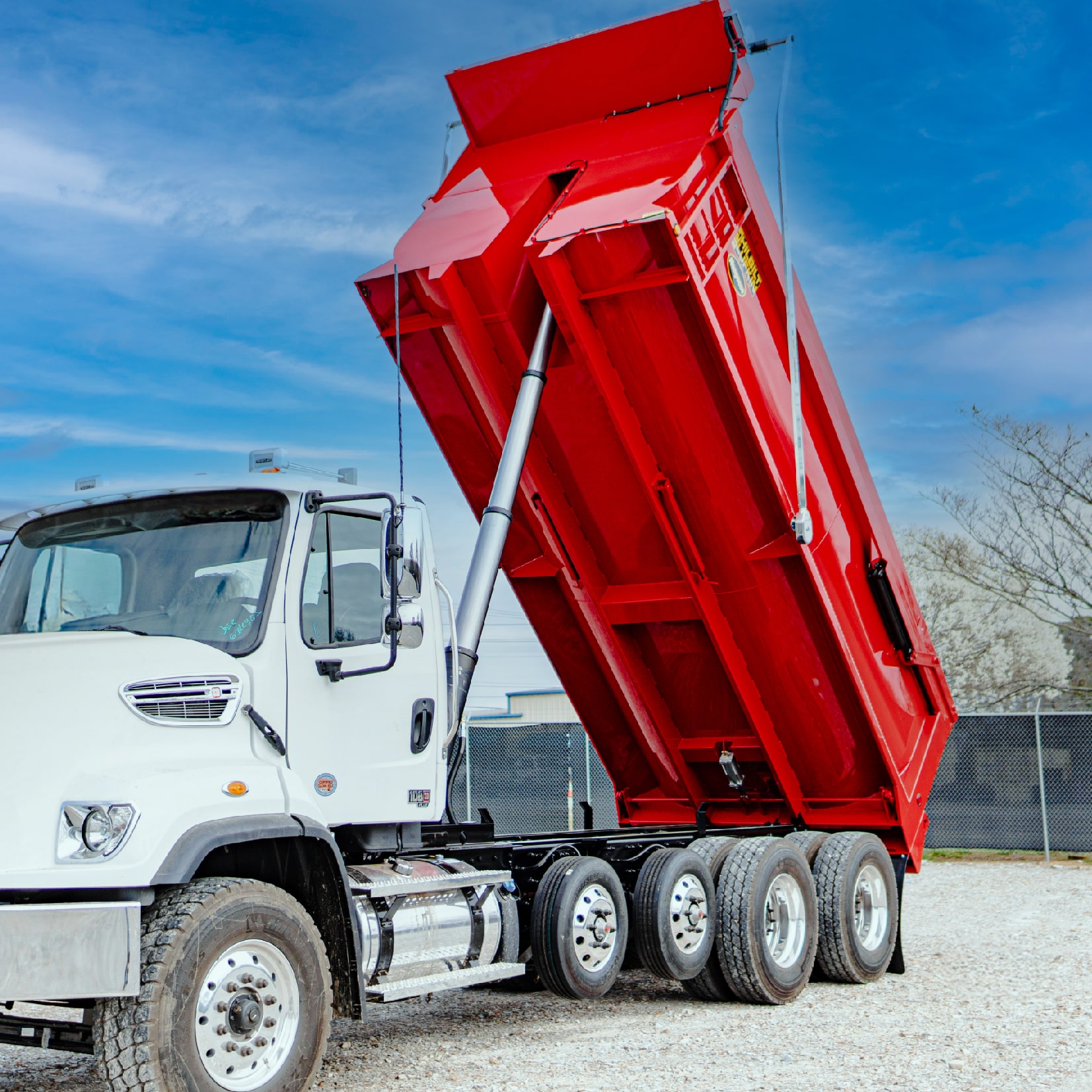

Rigid Underbody
The understructure is manufactured with an 8”x 2” x 1/4” tube main frame, 6”x 4”x 10 gauge channel crossmembers on 12” centers.

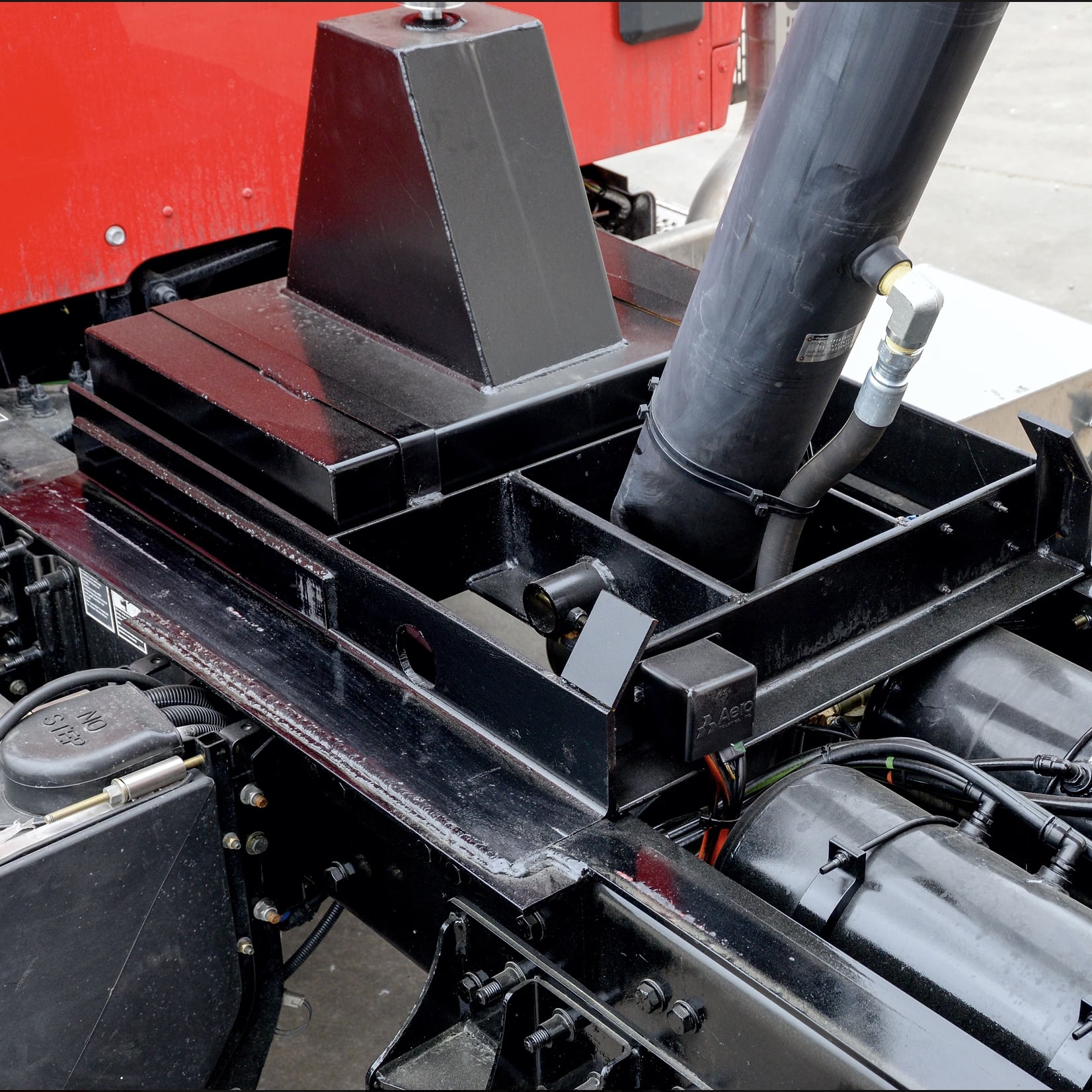

Mounting Saddle & Hydraulic Tank
Fabricated on site with industry leading quality control standards.

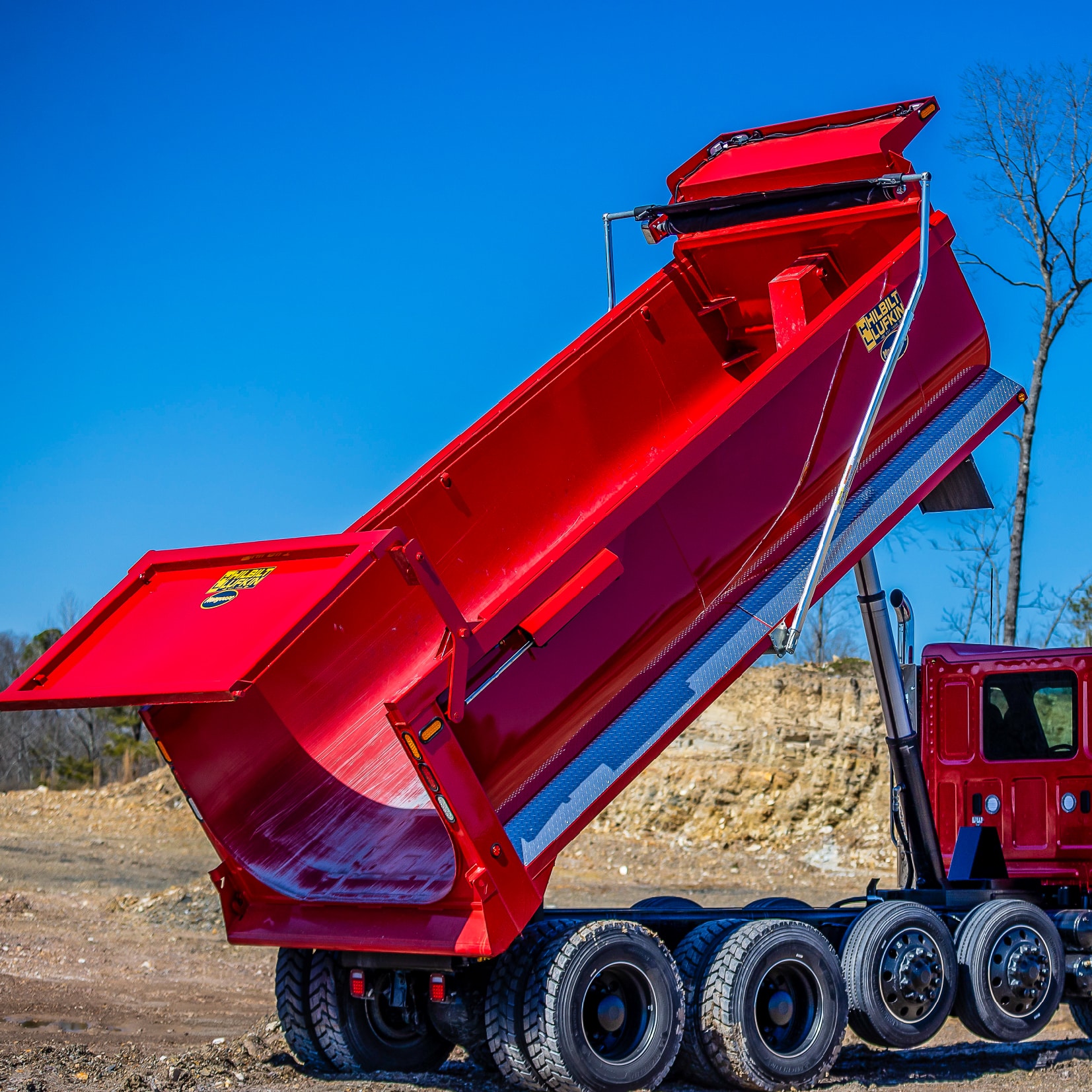

Upper Tailgate Hinge
Built of 3/4” AR-450
steel hinge arms, 3/8” Hi Tensile steel side plates, three casehardened bushings and a removable pin

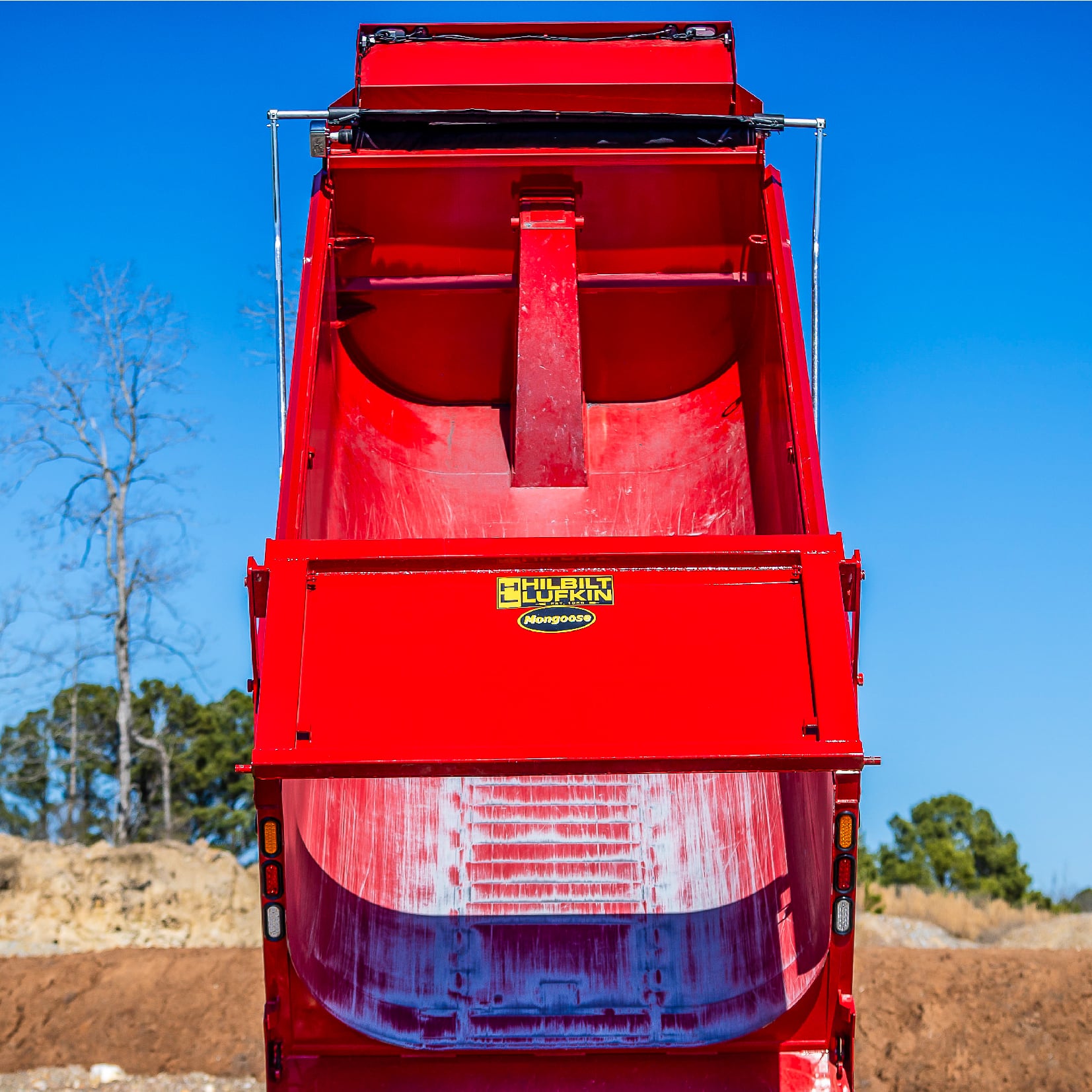

Tailgate Latch Assembly
Constructed with a 5/8”AR-200 steel latch arm, five grease pivot points and operated with a 3.5” doubleacting air cylinder
Rear Hinge
Standard 1-15/16” Hinge Pin with 1/2” wall greaseable bushings.
Disclaimer: Some equipment and features shown are optional. See dealer for additional information on options.
